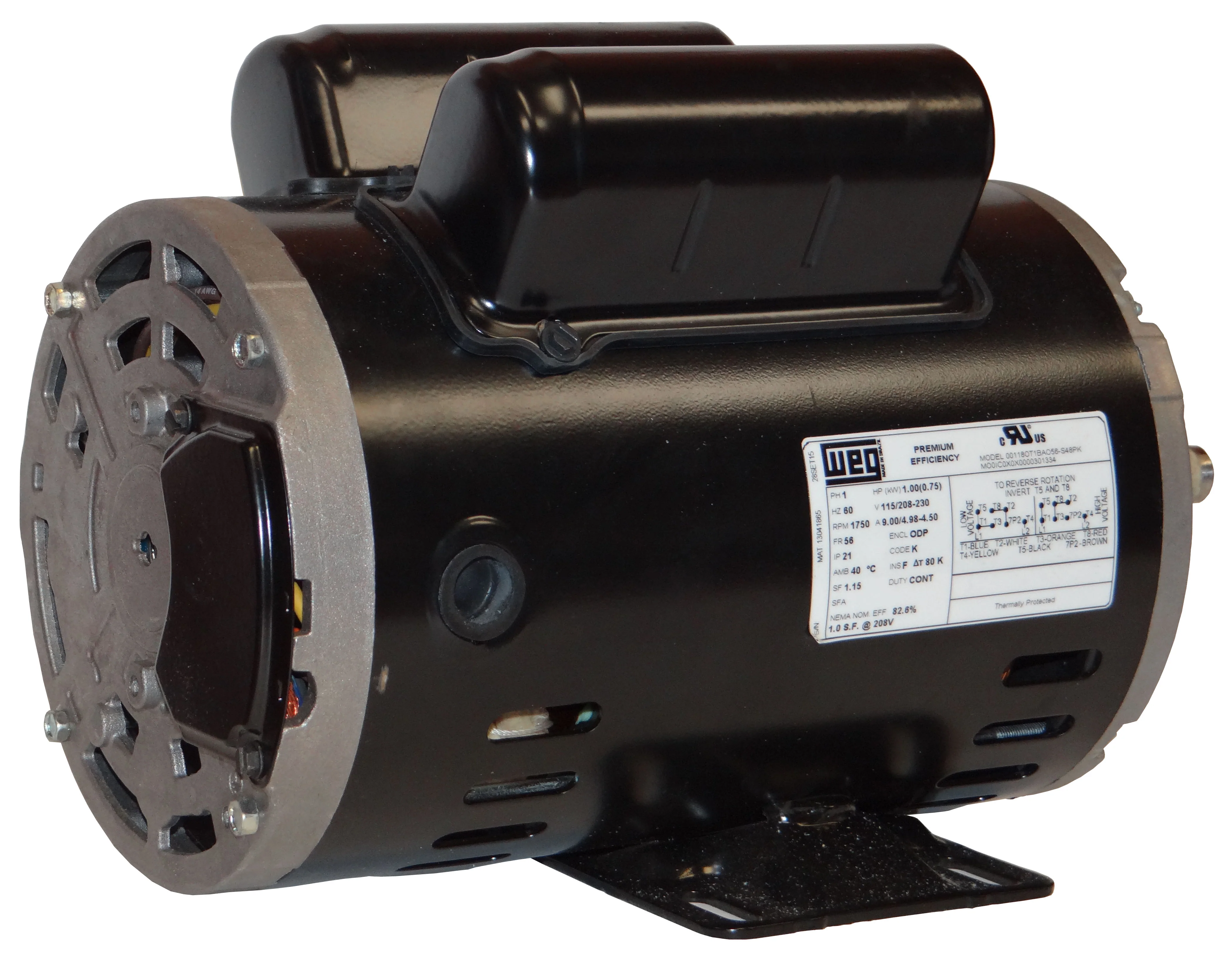

CaptiveAire CK56HB02D01-60HZ Fan Motor - 1HP, 115/208-230v, 1750 RPM
CaptiveAire CK56HB02D01-60HZ Fan Motor
CK56HB02D01-60HZ MOTOR − 1.00 HP, Single Phase, 115/208−230V, ODP, 1750 RPM, Rigid Base, 56 Frame, 8.10/4.40−4.00 FLA,
Keyway X 1−7/8 Shaft length. 5/8" Shaft Diameter. Class F Insulation.
If Motor Is Being Ordered As A Replacement Part For A Fan That Shipped Before 2016 Order Adapter Plate:
- F210008 For 13" & 15"
- F2100018 For 18" & 20"
- F2100007 & F2100007S For 24"
- F21000036 & F2100007S For 30" & 36"
Original: $359.00
-65%$359.00
$125.65More Images
CaptiveAire CK56HB02D01-60HZ Fan Motor - 1HP, 115/208-230v, 1750 RPM
CaptiveAire CK56HB02D01-60HZ Fan Motor
CK56HB02D01-60HZ MOTOR − 1.00 HP, Single Phase, 115/208−230V, ODP, 1750 RPM, Rigid Base, 56 Frame, 8.10/4.40−4.00 FLA,
Keyway X 1−7/8 Shaft length. 5/8" Shaft Diameter. Class F Insulation.
If Motor Is Being Ordered As A Replacement Part For A Fan That Shipped Before 2016 Order Adapter Plate:
- F210008 For 13" & 15"
- F2100018 For 18" & 20"
- F2100007 & F2100007S For 24"
- F21000036 & F2100007S For 30" & 36"
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
CaptiveAire CK56HB02D01-60HZ Fan Motor
CK56HB02D01-60HZ MOTOR − 1.00 HP, Single Phase, 115/208−230V, ODP, 1750 RPM, Rigid Base, 56 Frame, 8.10/4.40−4.00 FLA,
Keyway X 1−7/8 Shaft length. 5/8" Shaft Diameter. Class F Insulation.
If Motor Is Being Ordered As A Replacement Part For A Fan That Shipped Before 2016 Order Adapter Plate:
- F210008 For 13" & 15"
- F2100018 For 18" & 20"
- F2100007 & F2100007S For 24"
- F21000036 & F2100007S For 30" & 36"
